👉 Our microphone is designed to sound equally great on both classical (nylon-string) and acoustic (steel-string) guitars

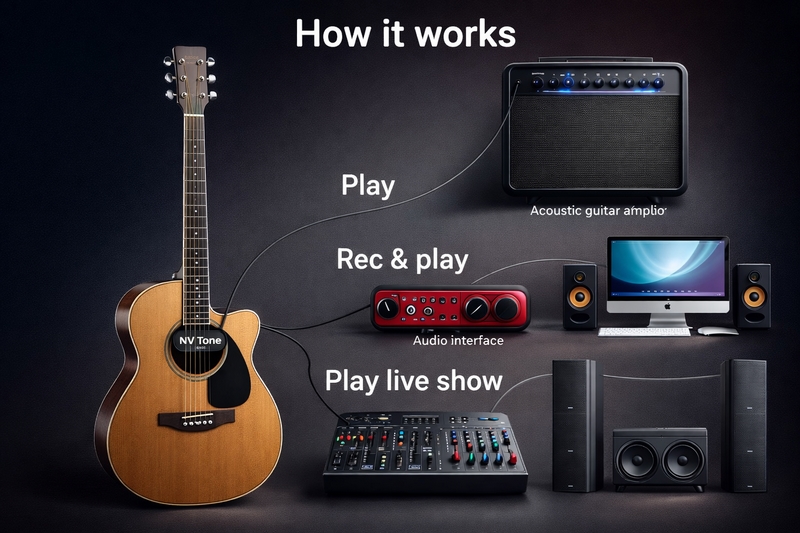

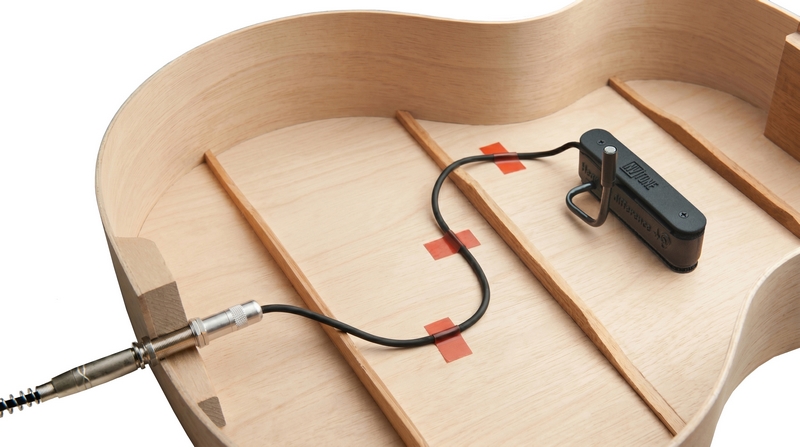

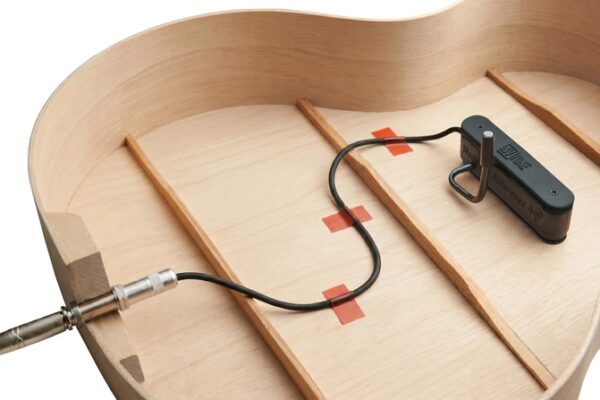

1. Install the microphone inside your acoustic or classical guitar using our official manual.
2. Connect it to the XLR input of your device.
3. Turn on phantom power (12–48V) if it is not enabled by default.
4. Adjust the gain and volume according to your room (usually no higher than 12 o’clock or about 30–40%).

WARNING
If your equipment does not provide +12–48V phantom power, use an external phantom power supply, such as:
XVIVE P1, BEHRINGER PS400, ART Phantom I, Mackie M48, PSC 48 Phantom, or similar devices.

5. Enjoy playing or create your professional recordings. Stay inspired!

3M Dual Lock SJ3540

«Alternative Installation Method of NV-Tone Swan NT (Integrated) Microphone in Guitar for Stage Performance with Rubber Suppressor»

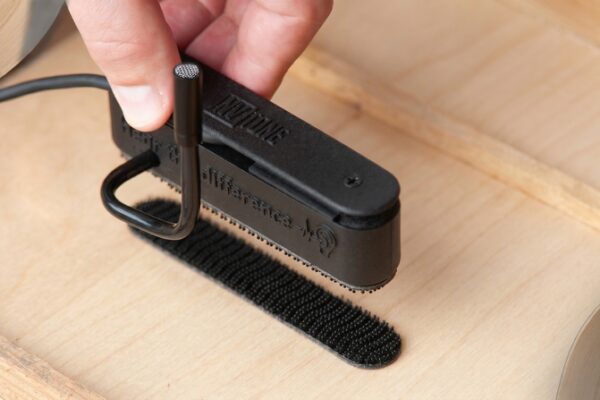

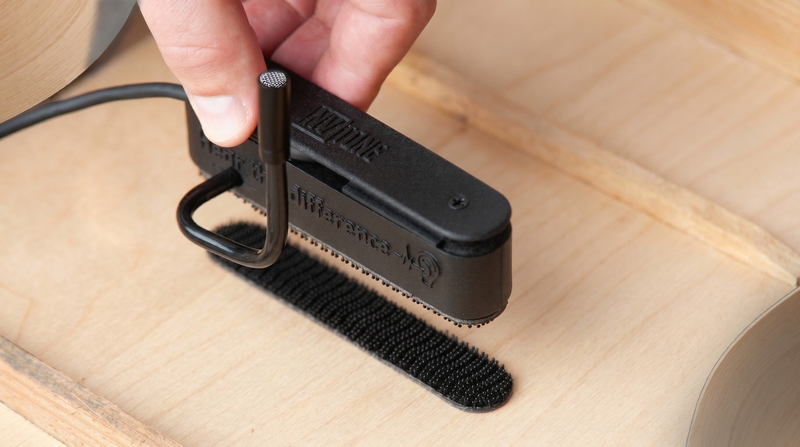

Using 3M Dual Lock SJ3540 for Mounting a Microphone Inside a Guitar

3M Dual Lock SJ3540 is a reliable and convenient solution, provided a few important conditions are met.

Advantages of this method:

✔️ Strong fixation — Dual Lock holds the load much better than regular Velcro. It is rated for over 1 kg per 6.5 cm². With a tape length of 10 cm and width of 1.6 cm (area ~16 cm²), it can easily support our 150g microphone mount.
✔️ No drilling — No need to drill holes in the guitar body.
✔️ Vibration absorption — The dense structure of the fastener helps reduce unwanted vibrations, improving microphone performance.
✔️ Removable mount — The microphone can be easily attached and removed when needed.

Recommendations for a secure attachment:
1. Remove any rough surfaces and dust, and degrease the inside of the guitar (use special sprays for musical instruments or dedicated wipes).
2. Apply the 3M Dual Lock tape.
Allow the adhesive to set — it is recommended to wait 24 hours after applying the Dual Lock before installing the microphone to ensure optimal adhesion.
